Excavators SPECIFICATIONS
Kobelco SK220
Weight
48,500 lbs (22,000 kg)
Horsepower
157 HP
Engine
6.1 L
Listings
8 Available
Overview
The Kobelco SK220 Excavator is a powerful and efficient machine designed for heavy-duty construction and excavation tasks. With its robust engine and advanced hydraulic system, it delivers exceptional performance and reliability on the job site.
Key Features
- High-performance Kobelco SAA6D107E-3 engine
- Advanced hydraulic system for optimal efficiency
- Compact design with reduced tail swing
- Excellent digging depth and reach capabilities
- Robust undercarriage for enhanced stability
- User-friendly controls for improved operator comfort
- Tier 4 Final emissions compliant
- Durable construction for long service life
Technical Specifications
Engine
| Engine Model | Kobelco SAA6D107E-3 |
| Cylinders | 6 |
| Emissions | Tier 4 Final |
| Fuel Type | Diesel |
| Rated RPM | 2,000 RPM |
| Aspiration | Turbocharged |
| Horsepower | 157 HP |
| Displacement | 6.1 L |
| Net Horsepower | 148 HP |
| Gross Horsepower | 157 HP |
Dimensions & Weight
| Transport Width | 8 ft 6 in (2,590 mm) |
| Ground Clearance | 1 ft 2 in (350 mm) |
| Operating Weight | 48,500 lbs (22,000 kg) |
| Transport Height | 9 ft 4 in (2,840 mm) |
| Transport Length | 24 ft 5 in (7,440 mm) |
| Tail Swing Radius | 6 ft 8 in (2,050 mm) |
Performance
| Max Dig Depth | 19 ft 8 in (5,990 mm) |
| Max Reach | 31 ft 6 in (9,600 mm) |
| Swing Speed | 10.5 RPM |
| Travel Speed | 3.4 mph (5.5 km/h) |
| Breakout Force | 30,000 lbs (133 kN) |
| Max Lift Height | 23 ft 9 in (7,240 mm) |
| Lifting Capacity | 11,000 lbs (5,000 kg) |
| Arm Digging Force | 16,000 lbs (71 kN) |
| Bucket Digging Force | 24,000 lbs (107 kN) |
Hydraulic System
| Pump Flow | 40.3 GPM (153 L/min) |
| Hydraulic Type | Closed Center |
| System Pressure | 5,080 psi (350 bar) |
Fluid Capacities
| Coolant Capacity | 6.6 gal (25 L) |
| Fuel Tank | 50.4 gal (191 L) |
| Engine Oil Capacity | 5.8 gal (22 L) |
| Hydraulic Tank | 28.7 gal (109 L) |
Undercarriage
| Shoe Width | 24 in (600 mm) |
| Track Type | Rubber |
| Track Gauge | 7 ft 10 in (2,390 mm) |
| Ground Pressure | 5.5 psi (38 kPa) |
Common Applications
Site preparation
Excavation and trenching
Landscaping and grading
Demolition work
Utility installation
Material handling
Kobelco SK75SR-3E crawler excavator with rototilt, 4 bucke 2018 19801
€72,237

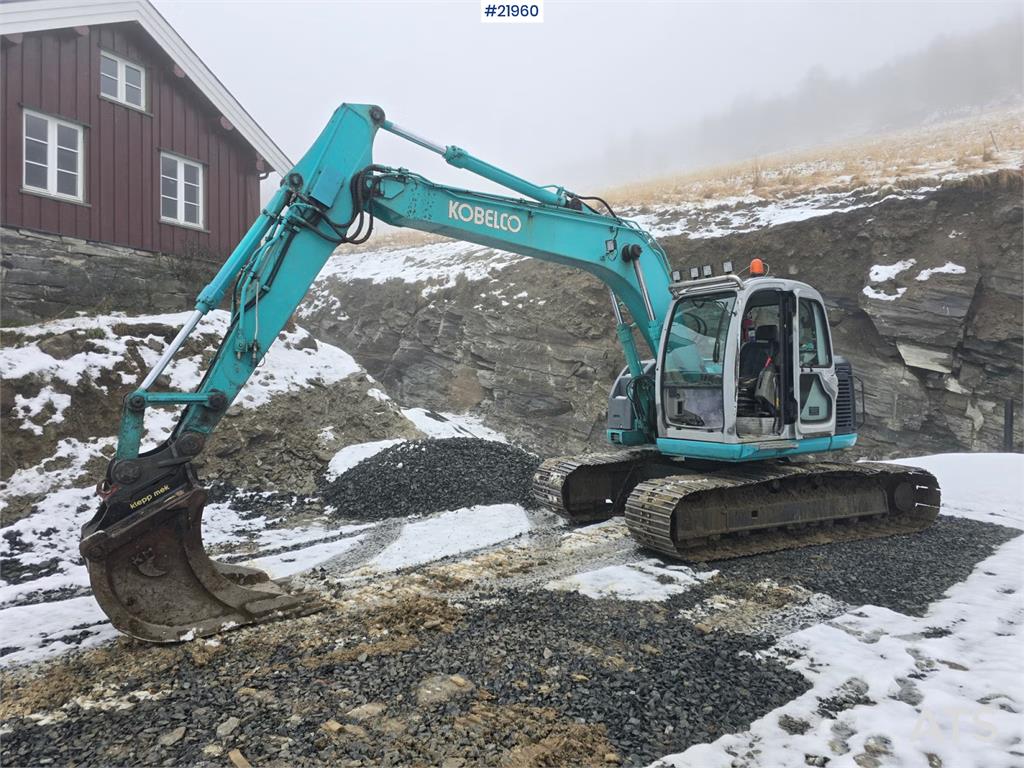

Kobelco SK135 SR LC tracked excavator with digging bucket 2002 21960
€25,876

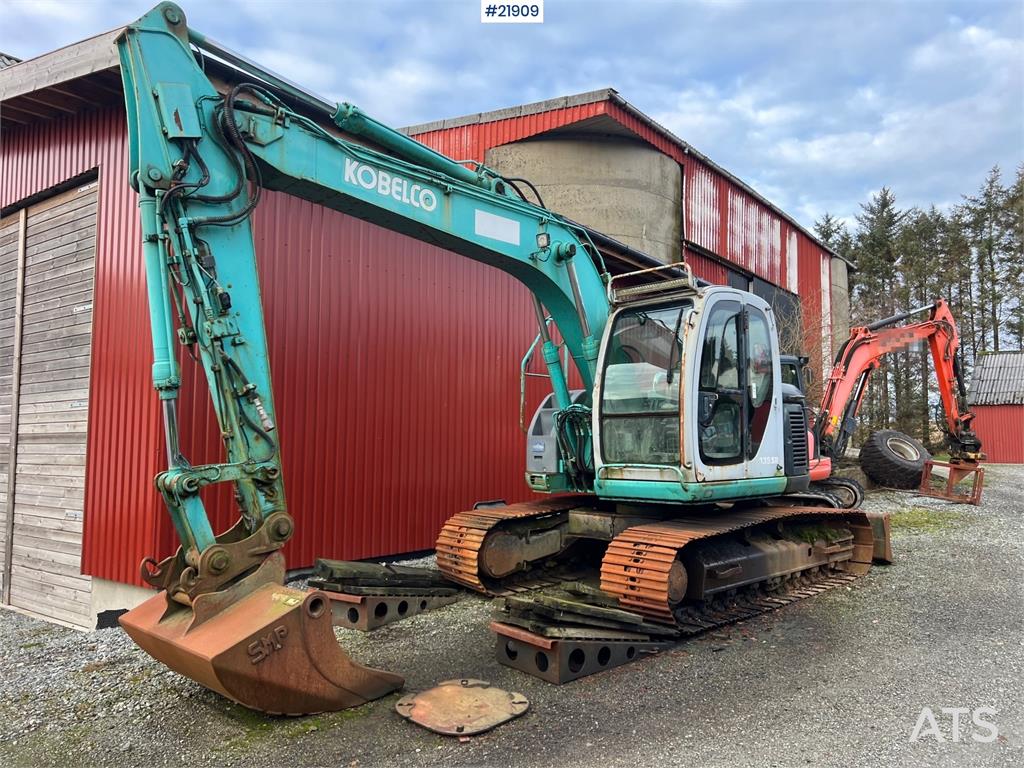

Kobelco sk135SRLC w/ sanding bucket and digging bucket 1999 21909
€14,311

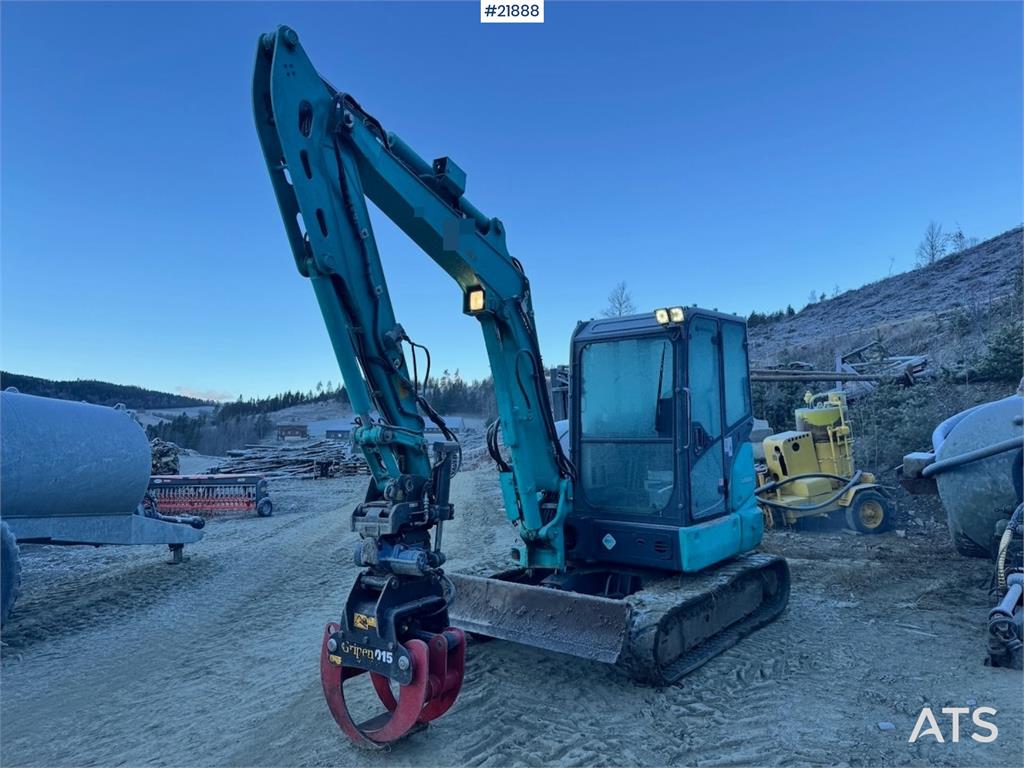

Kobelco SK55SRX-6 with Rototilt and 3 buckets. 2330 hours! 2018 21888
€46,645

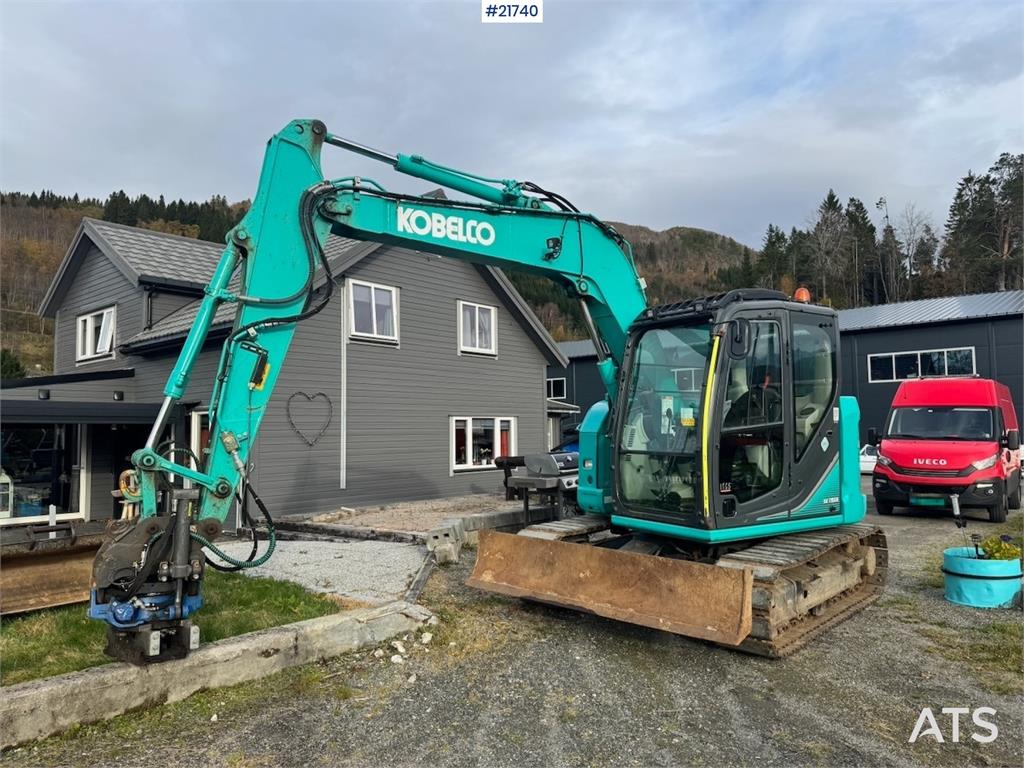

Kobelco SK75SR-3E w/ Rototilt, 2 buckets and grapple. 1850 2018 21740
€73,473

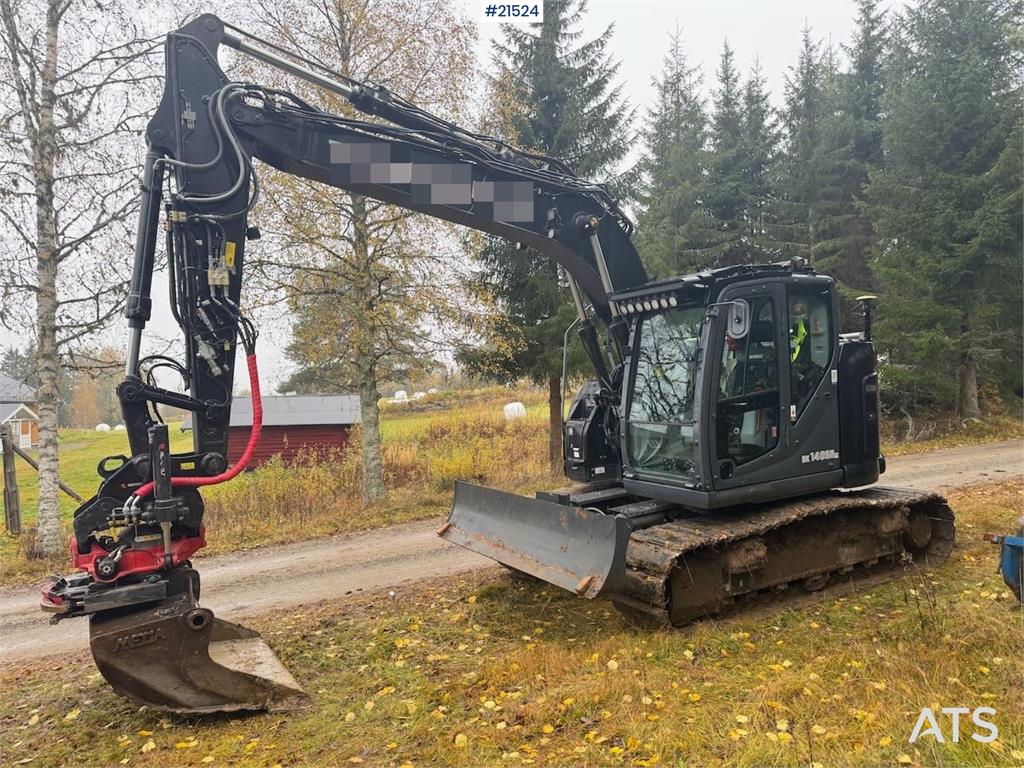

Kobelco SK140SRLC Tracked excavator w/ Machine control, ti 2023 21524
€146,478

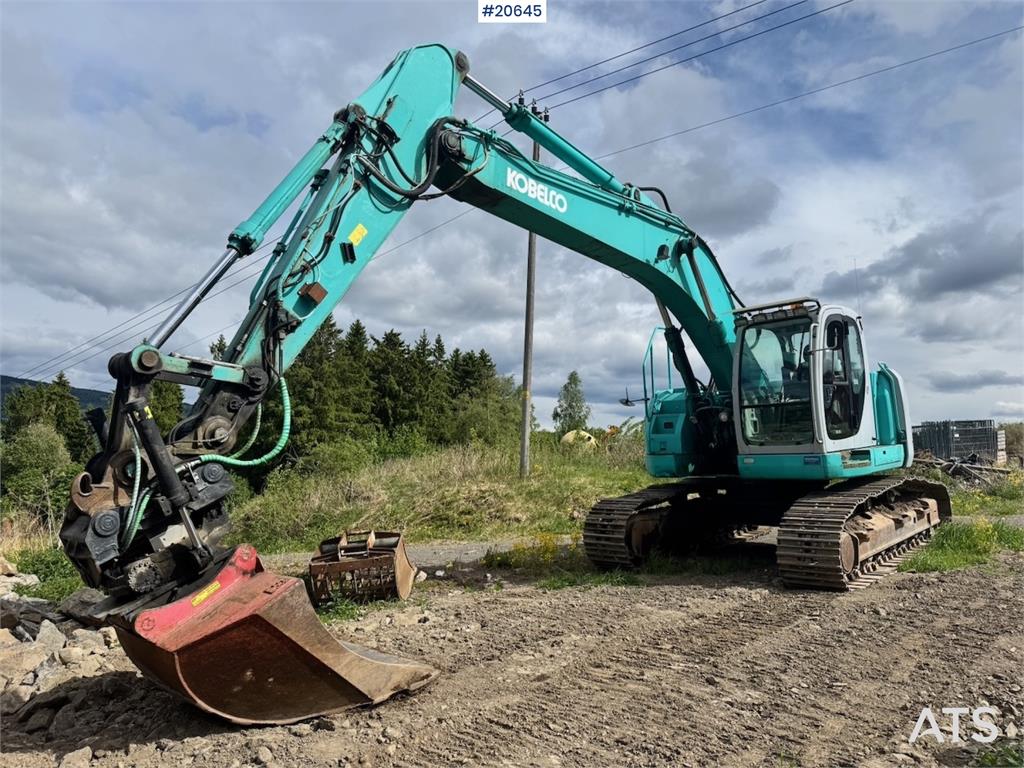

Kobelco SK235SR Tracked excavator w/ Rototilt and bucket. 2000 20645
€28,472

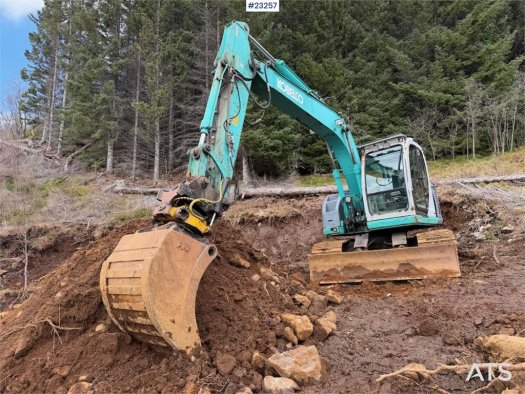

Kobelco SK135 SRLC-1E excavator w/ 3 buckets, Jib, new ste
