🇳🇱 Informatie in het Nederlands:

Werkhoogte: 1.350 cm

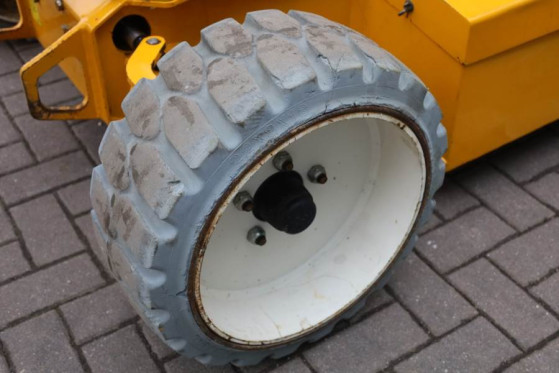

Resterend profiel voorbanden: 60
Resterend profiel achterbanden: 60
Max. horizontale reikwijdte: 610 m
Afmetingen (LxBxH) (m): 4.1x1.5x2
Neem voor meer informatie contact op met Pfeifer Rentals & Sales B.V. (+31 544 463 114, +31622694752, [email protected])

Manufacturer: Snorkel
Typ: A38E
Building year: 2011
Fuel: Electric
Serial number: A38E-01-004576

Max. working height: 13.5m
Max. platform height: 11.5m
Max. horizontal reach: 6.1m
Clearance height at max. outreach: 5.4m

Platform floor size (inside) 0.69m x 1.11m
Overall length: 4.1m
Overall width: 1.5m
Stowed height: 2.0m
Ground clearance: 120mm

Platform capacity (SWL) 215kg
Max. drive height 11.5m

Max. drive speed (elevated) 0.65km/h
Max. drive speed (stowed) 4.0 km/h

Gradeability: 36%
Superstructure rotation: 360° non continuous
Tailswing (riser boom elevated) 0m
Tailswing (riser boom stowed) 1.4m
Inside turning radius 1.12m
Outside turning radius 2.4m

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.



🇬🇧 Information in English:

Working height: 1.350 cm
Front tyres / undercarriage remaining: 60
Rear tyres remaining : 60
Tyre brand: -
Max. horizontal reach: 610 m
Transport dimensions (LxWxH): 4.1x1.5x2
Please contact Pfeifer Rentals & Sales B.V. (+31 544 463 114, +31622694752, [email protected]) for more information
