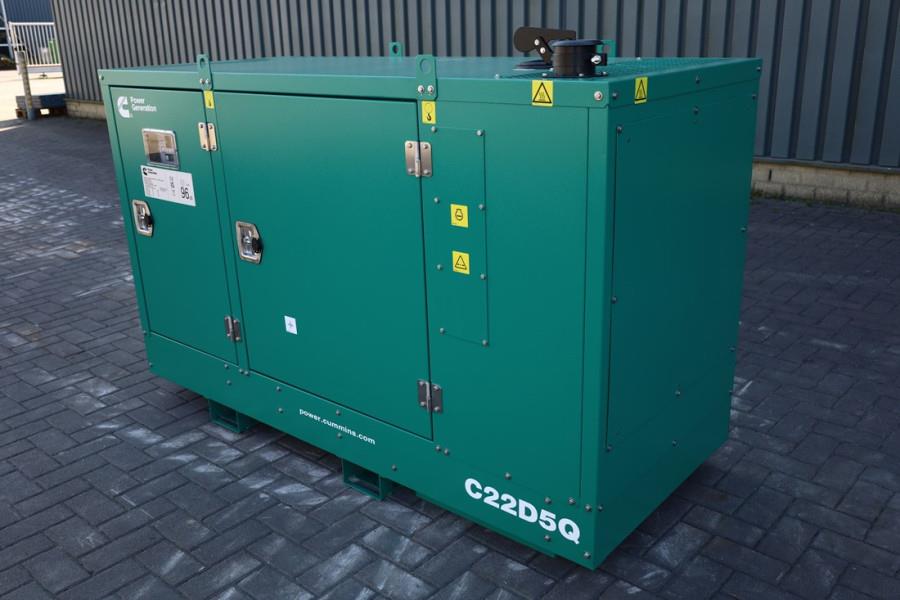

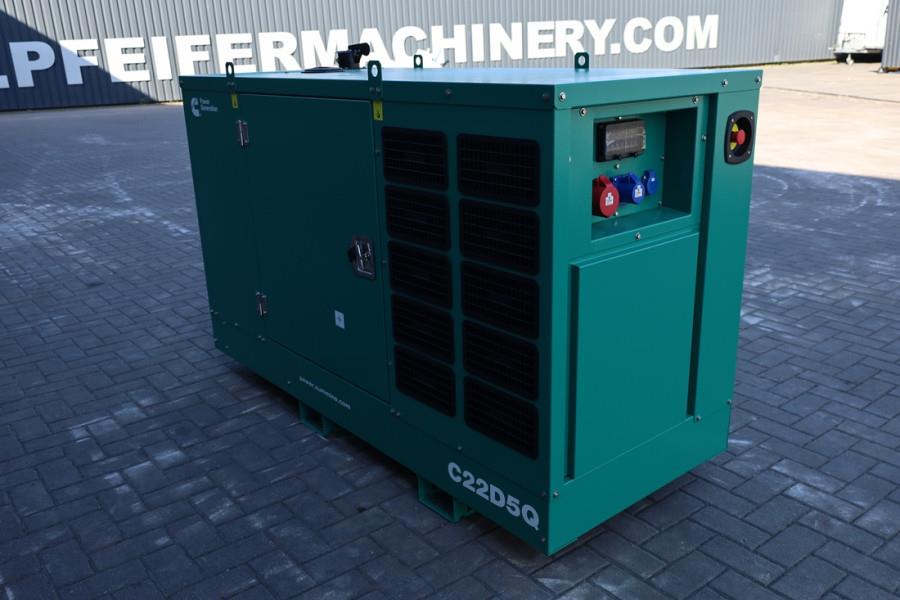

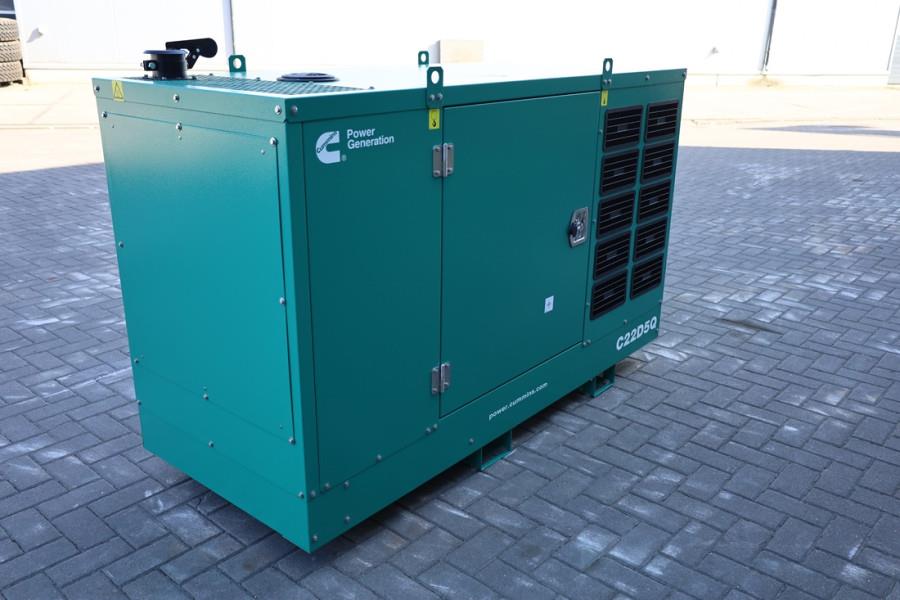

Name: Cummins C22D5Q Declaration of Conformity, Diesel, 22kVA, A 2025 CUMMINS - C22D5Q - 63412
Brand: CUMMINS
SKU: CUM-GEN-474372
Price: 9887 usd
Availability: InStock

Generators

🇳🇱 Informatie in het Nederlands:

Brandstofsoort: Diesel
Generatorvermogen: 22 kVA
Afmetingen (LxBxH) (m): 1.96x0.82x1.28
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C22D5Q
Manuf. Year: 2025

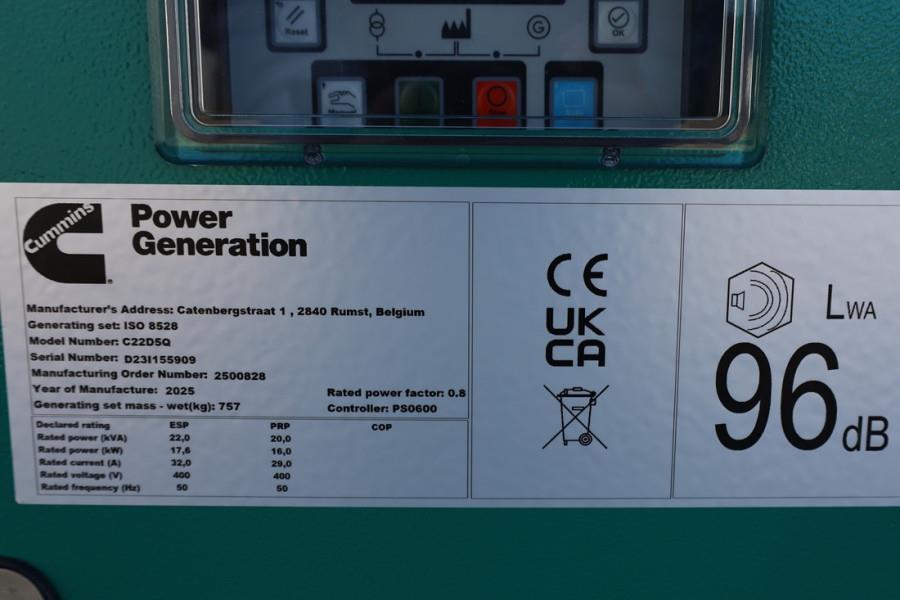

Serial nr: D23I155909
Fuel: Diesel

General
Model: C22D5Q

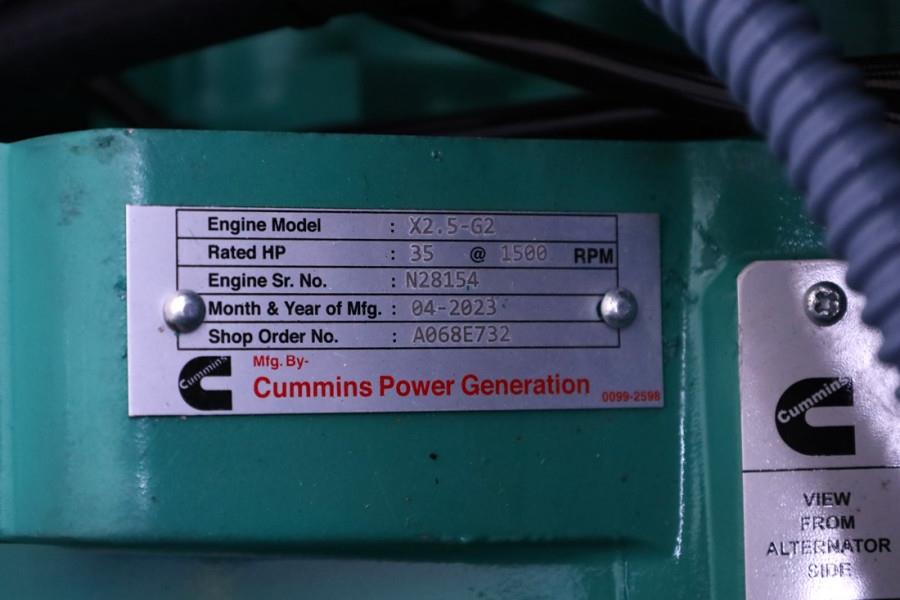

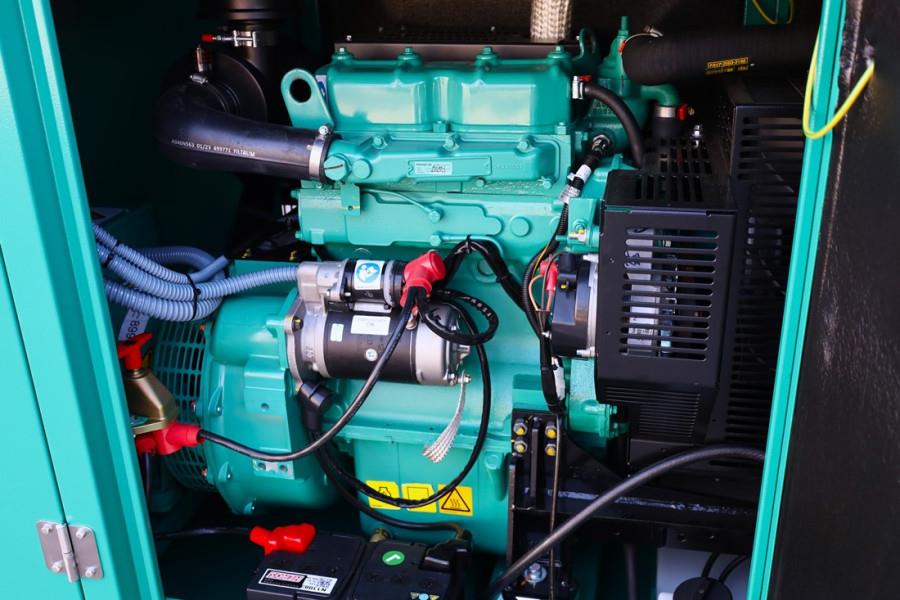

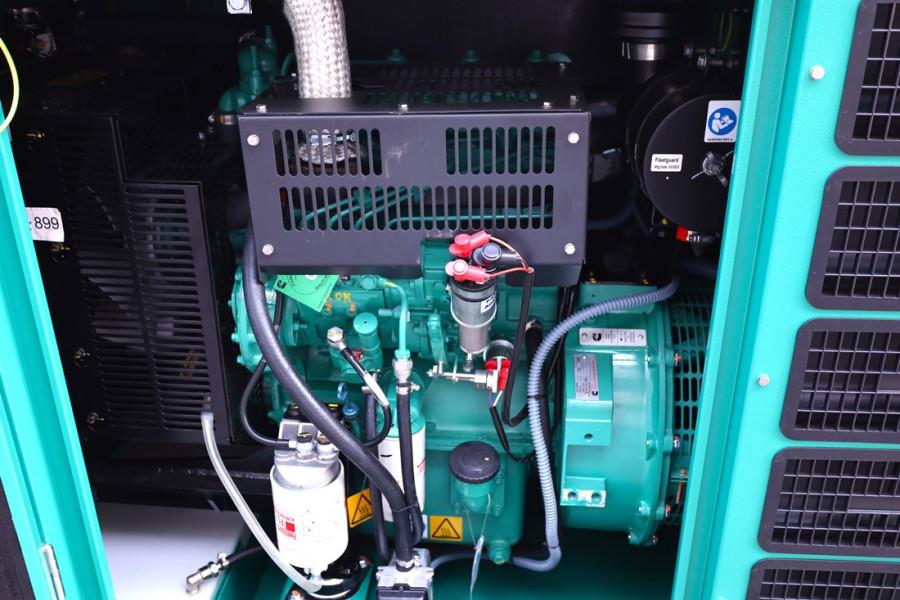

Engine: Cummins X2.5-G2

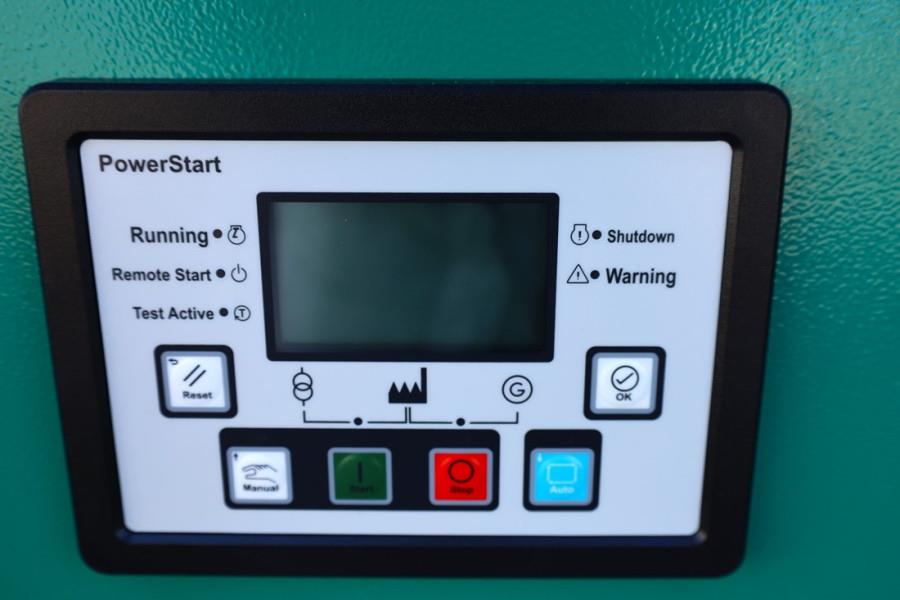

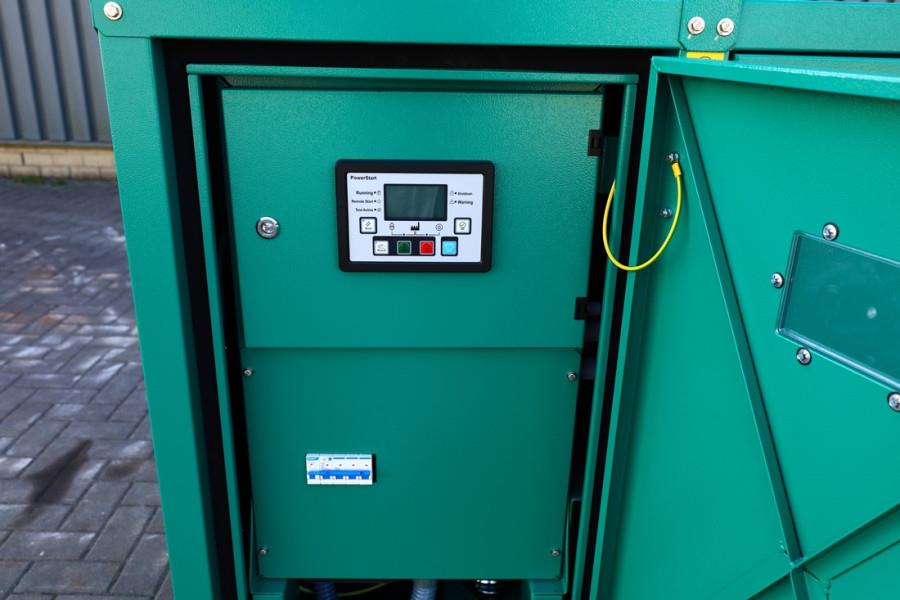

Controller: PowerStart PS0600
Alternator: Stamford S0L2-G1
Phases: 3-phase
Voltage: 400/230 V
Frequency: 50 Hz
ESP (Standby Power): 22 kVA / 18 kW
PRP (Prime Power): 20 kVA / 16 kW
Current (ESP): 31.8 A

Engine Performance
Displacement: 2.5 litres, 3-cylinder inline
Speed: 1500 rpm
Gross engine power: 27 kWm (ESP), 24.37 kWm (PRP)
Oil capacity: 7.3 / 8.0 litres
Coolant capacity: 15 litres
Air intake: 2.30 m³/min
Exhaust gas flow: 127 kg/h at 660°C
Max. back pressure (exhaust): 3.38 kPa

Fuel Consumption
Fuel tank capacity: 55 litres
Autonomy @ 75% PRP: 13 hours
Fuel consumption at full load (PRP): 5.2 l/h
Max. fuel flow: 40 l/h

Electrical System
Starting voltage: 12 VDC
Battery: 12V, 75 Ah
Battery charger: 4 A, 12/24 VDC

Dimensions & Weight
LxWxH: 1.960mm x 0.820mm x 1.285mm
Wet Weight (kg) 757

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors



🇬🇧 Information in English:

Type of fuel: Diesel
Generator capacity: 22 kVA
Transport dimensions (LxWxH): 1.96x0.82x1.28
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
