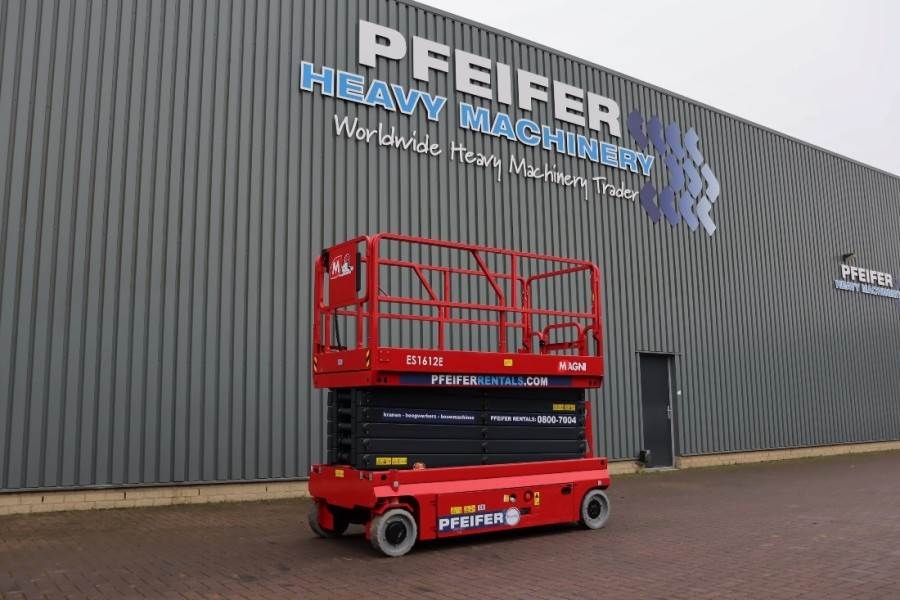

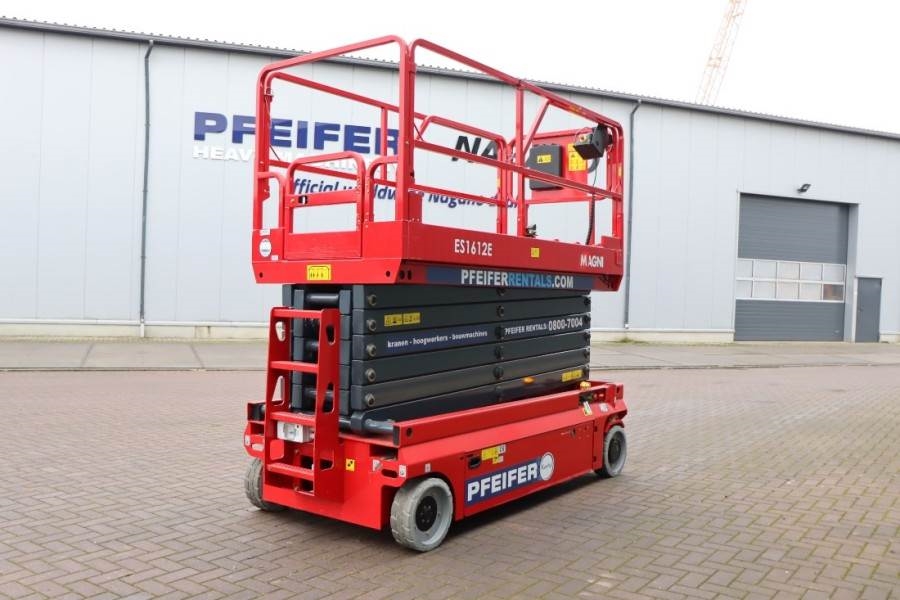

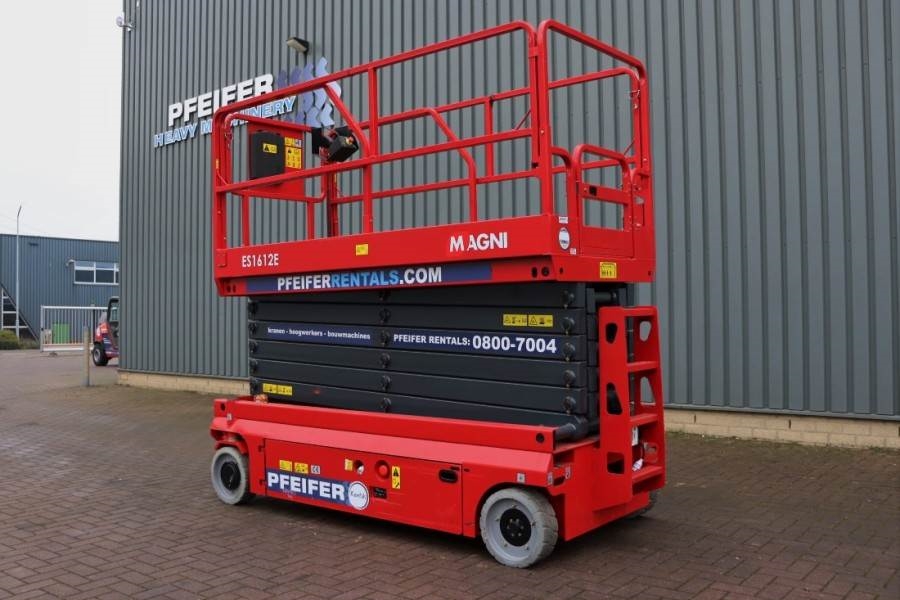

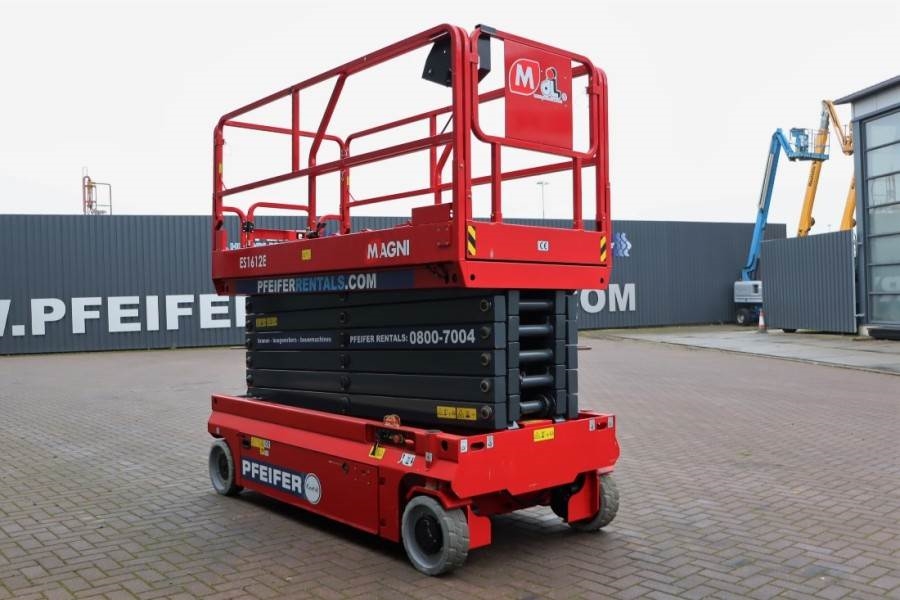

Name: Magni ES1612E Available Directly From Stock, Electric, 1 2019 MAGNI - ES1612E - 60106
Brand: OTHER EQUIPMENT
SKU: MAG-SCI-473738
Price: 19188 usd
Availability: InStock

Scissor Lifts

🇳🇱 Informatie in het Nederlands:

Werkhoogte: 1.570 cm
Afmetingen (LxBxH) (m): 2.49x1.19x2.72
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

This Magni ES 1612 E Is also available for rental..

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

Manufacturer: Magni
Typ: ES1612E
Fuel: Electric
Serial number: MN171211-4

Weight (CE): 3.180 kg
Load Capacity: 250 kg
Load capacity when extended: 113 kg

Working height: 15,7 m
Platform floor level height: 13,7 m

Overall length: 2,48 m
Overall width: 1,19 m
Overall height (rails up): 2,72 m
Transport height (rails down): 2,18 m
Platform dimensions (length /width): 2,27x1,12 m
Platform extension: 0,9 m
Ground clearance (stowed): 10 cm
Ground clearance (raised): 1,6 cm
Wheelbase: 1,87 m
Turning radius (inside): 0 cm
Turning radius (outside): 2,20 m

Travel speed (stowed): 4 km/h
Travel speed (raised): 0,8 km/h

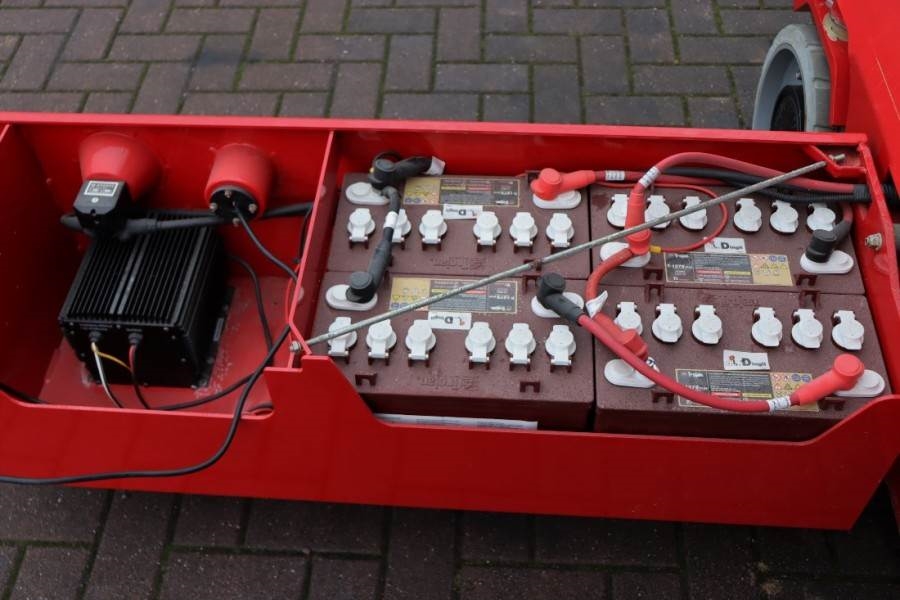

Batteries: 4x12 V / 300Ah

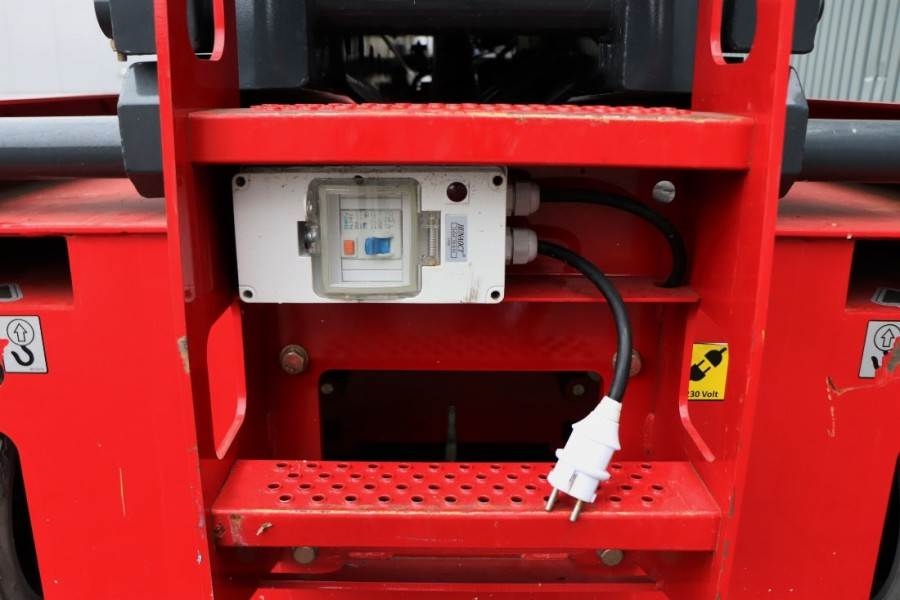

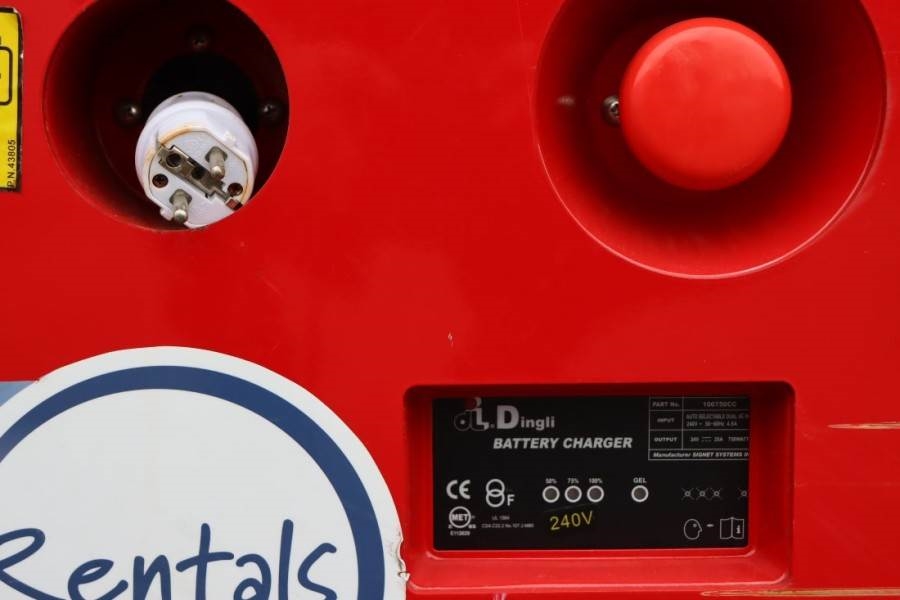

Integrated battery charger 24V / 25A

Gradeability: 25%
Max. working slope: 1,5°/3°

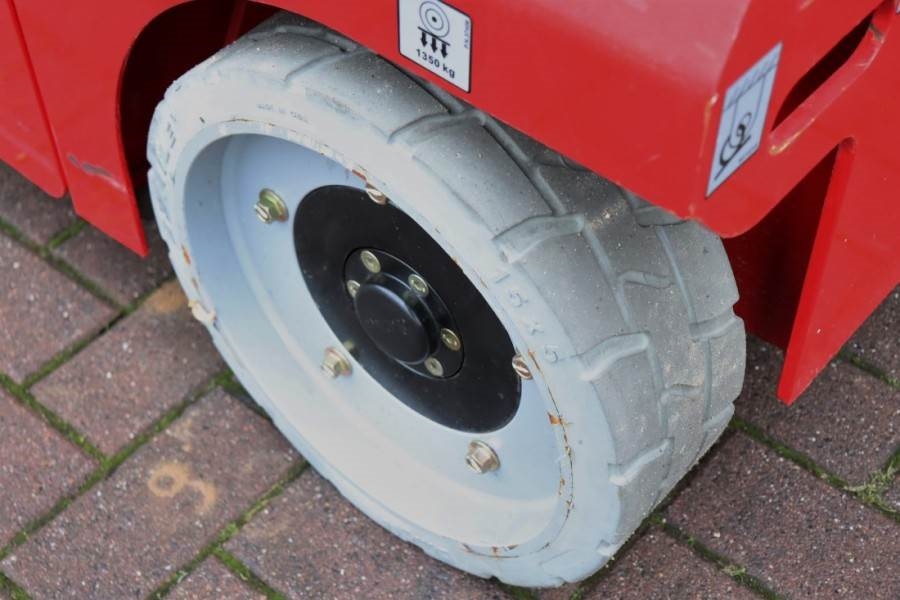

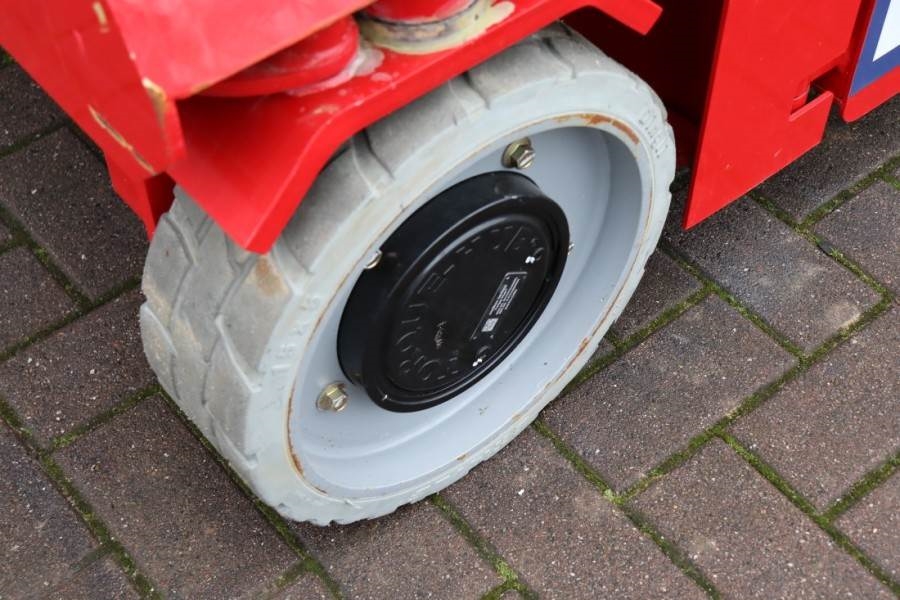

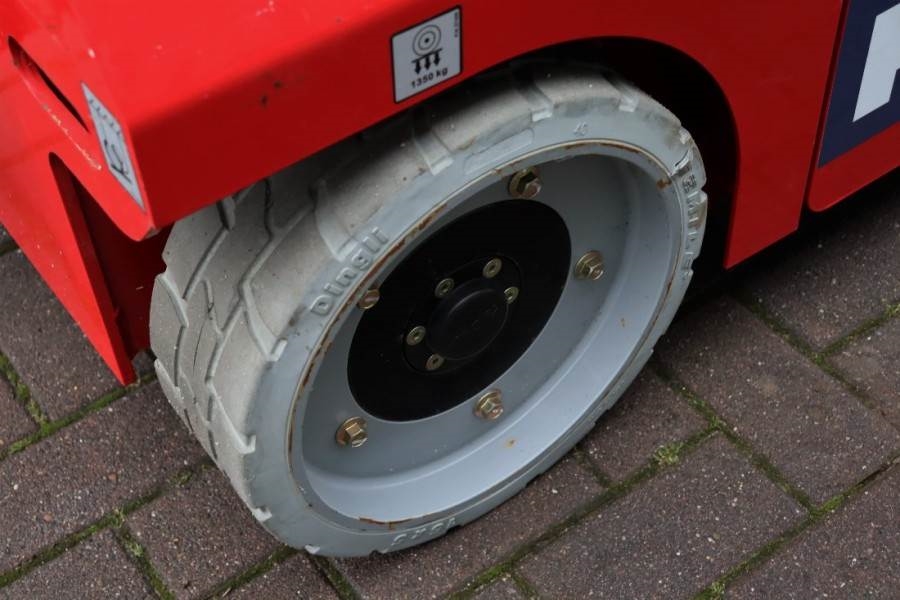

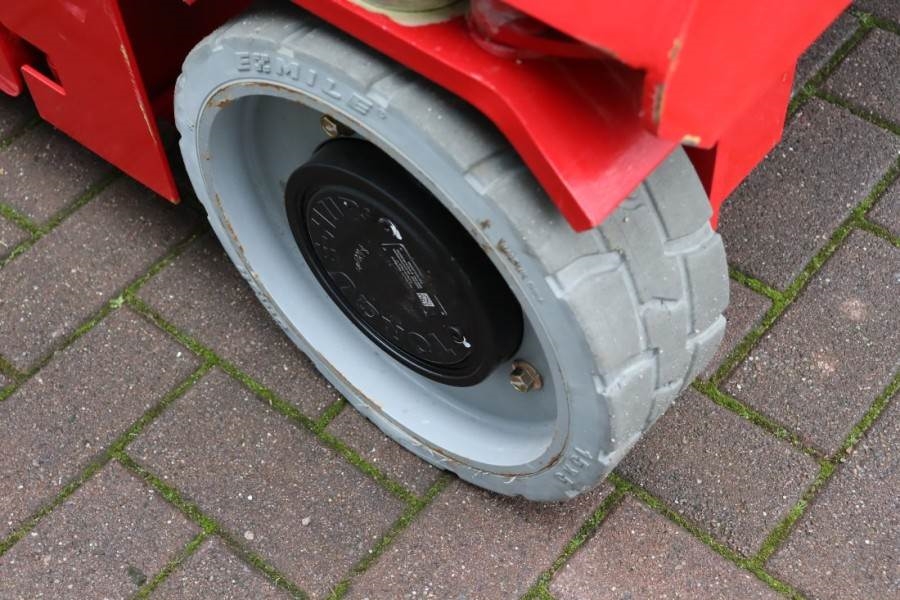

Non-marking tyres: 381x127 mm

All necessary documents and papers.

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.



🇬🇧 Information in English:

Working height: 1.570 cm
Transport dimensions (LxWxH): 2.49x1.19x2.72
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
