Name: Snorkel 460SJ Valid Inspection, *Guarantee! CE, Diesel, 4x 2025 SNORKEL - 460SJ - 63958
Brand: SNORKEL
SKU: SNO-TEL-474738
Price: 55575 usd
Availability: InStock

🇳🇱 Informatie in het Nederlands:

Brandstofsoort: Diesel
Werkhoogte: 1.600 cm
Resterend profiel voorbanden: 0
Resterend profiel achterbanden: 0
Max. horizontale reikwijdte: 1230 m
Afmetingen (LxBxH) (m): 8.6x2.31x2.38
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

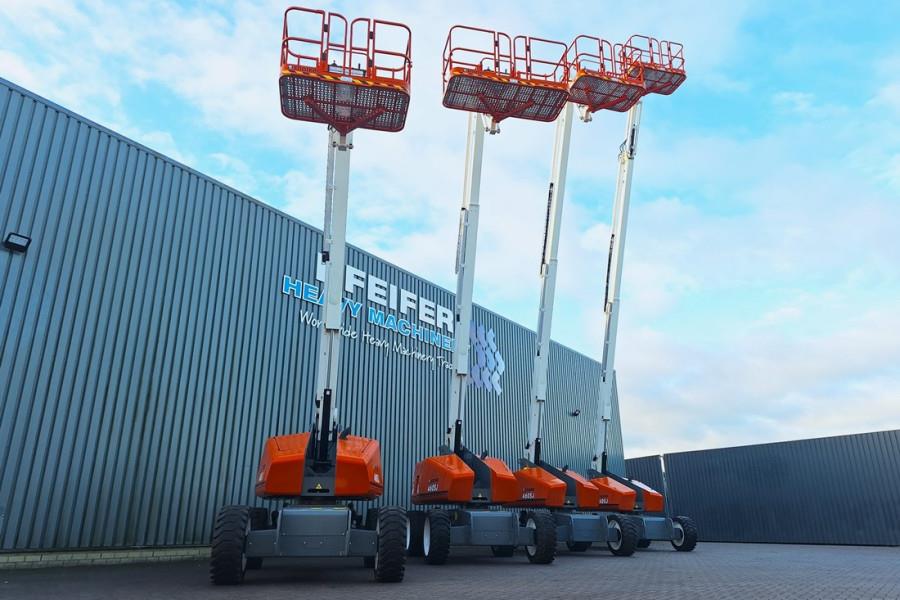

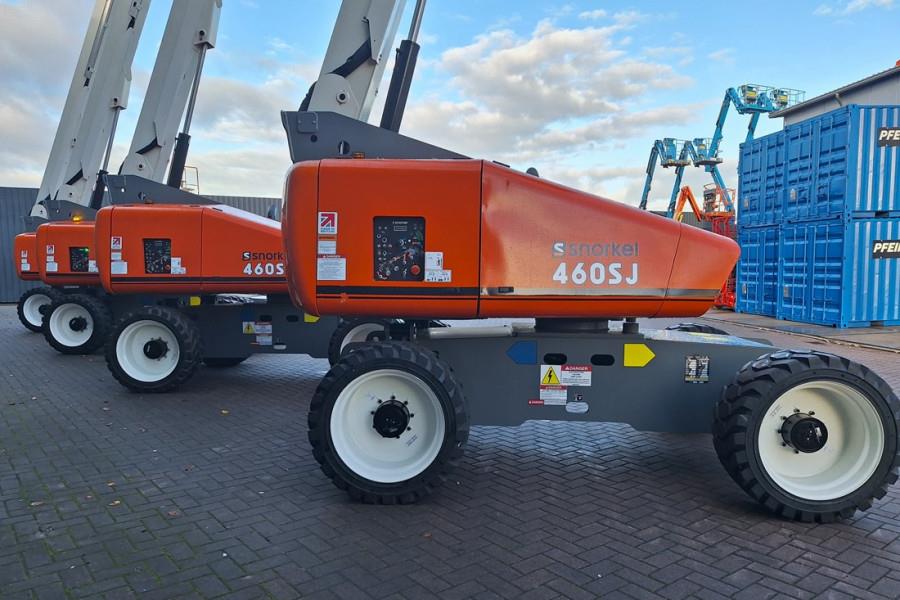

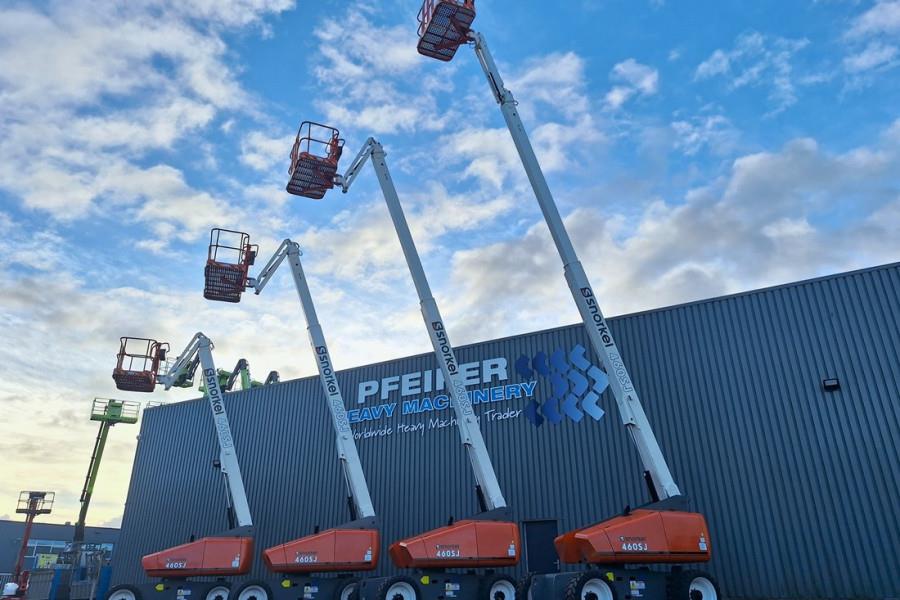

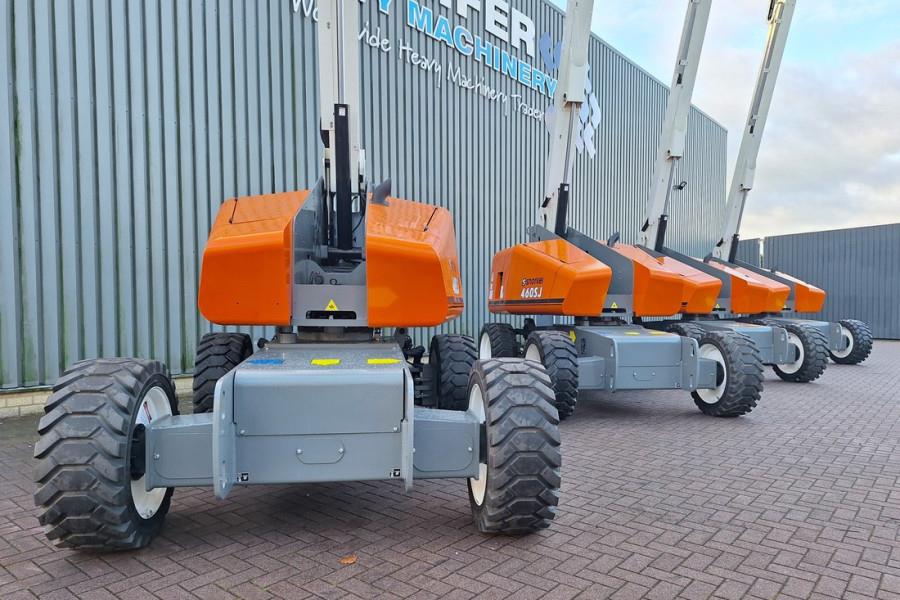

Self-Propelled Boomlift
Snorkel 460SJ YEAR 2025

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

This machine is also available for rent!

Manufacturer: Snorkel
Typ: 460SJ
Building year: 2025
Fuel: Diesel
Serial number: 460SJ-01-250800013

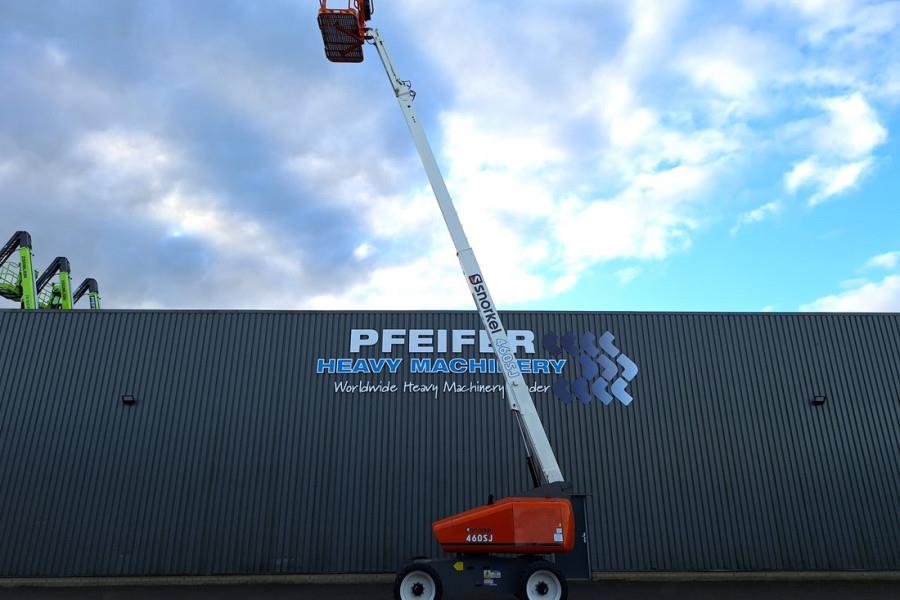

Working Height 16 m
Horizontal Outreach: 12.3 m

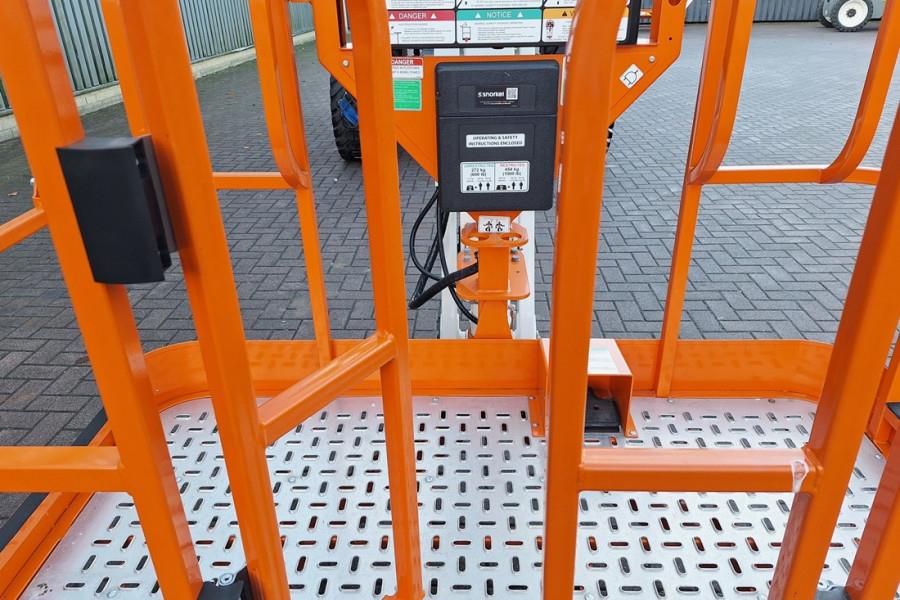

Platform Size: 2.44m x 0.91m
Max Drive Height: 14.0m

Platform Capacity – Unrestricted: 272kg
Platform Capacity – Restricted: 454kg

Max Wind Speed: 12.5m/s
Max Drive Speed (Stowed): 6.8km/h
Max Drive Speed (Elevated): 1.0km/h

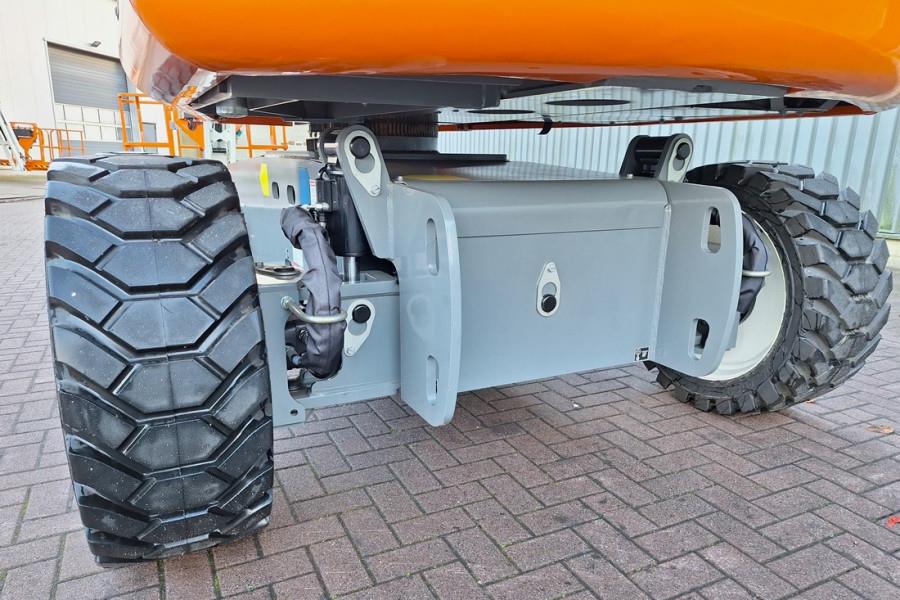

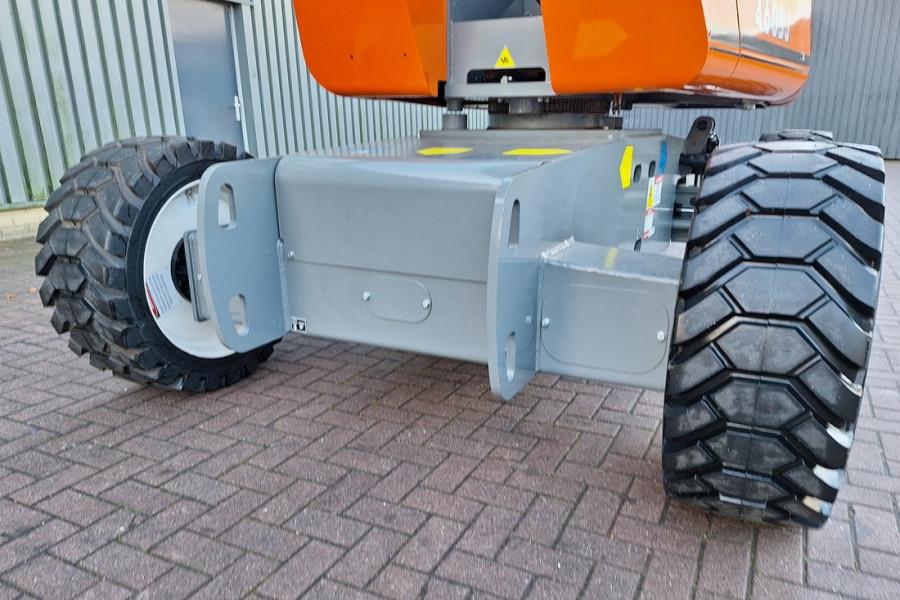

Tyres: 355/55 D625 foam filled lug
Drive System: 4 wheel drive

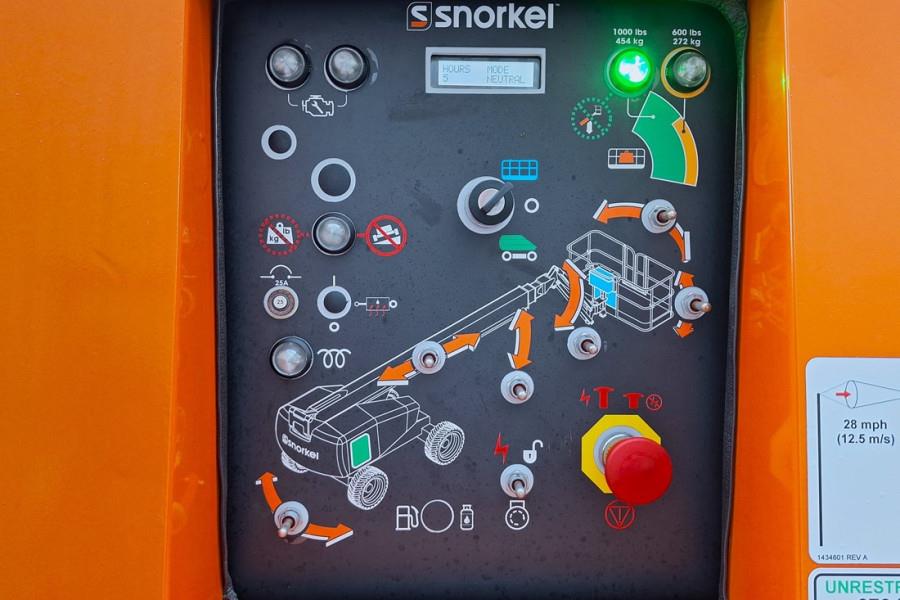

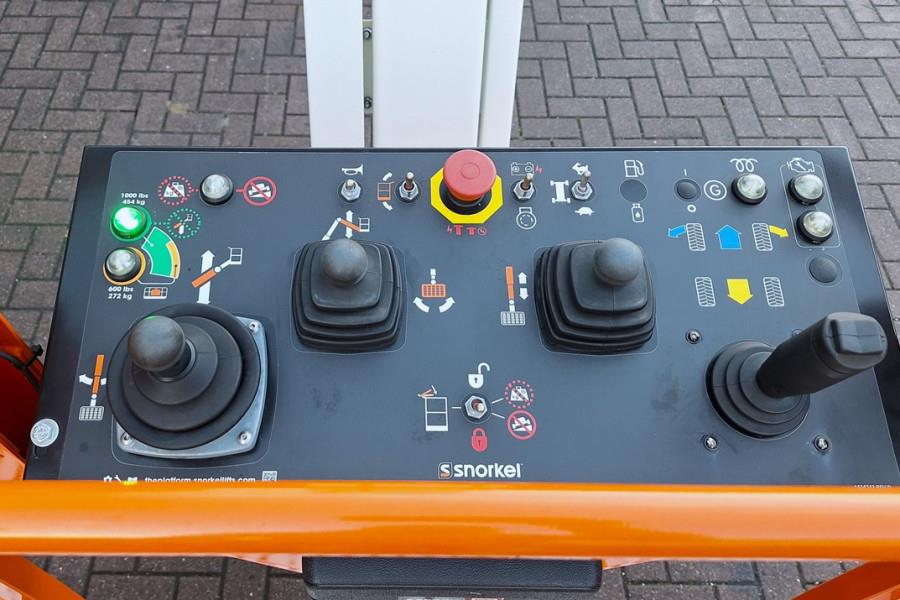

Controls: Proportional drive, raise, slew, extend, jib & platform rotate

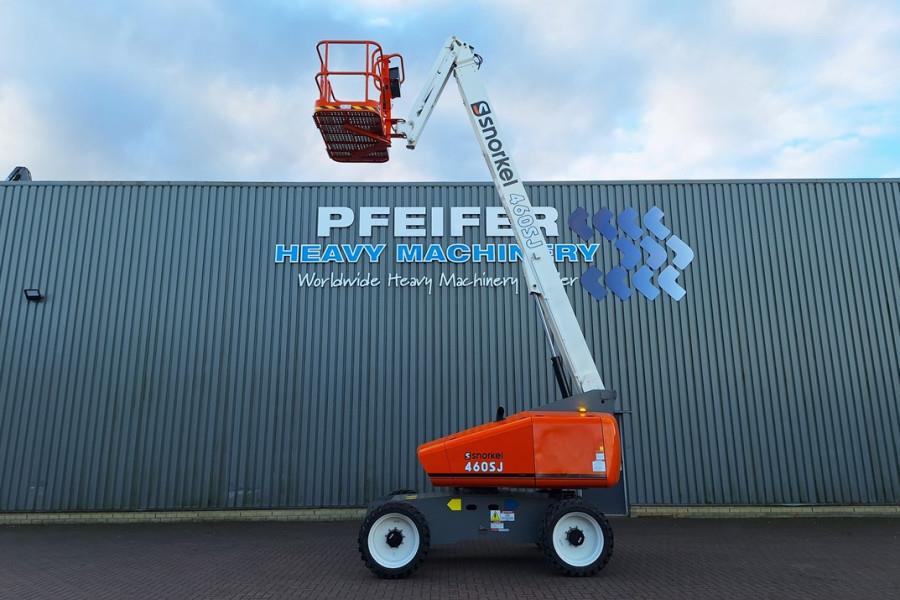

Jib Length: 1.67m
Jib Arc: 135º (+70º/-65º)
Platform Rotation: 150º
Turret Rotation: 360° continuous
Tailswing: 0.9m

Ground Clearance: 320mm
Gradeability: 50%
Inside Turning Radius: 3.0m
Outside Turning Radius: 5.06m

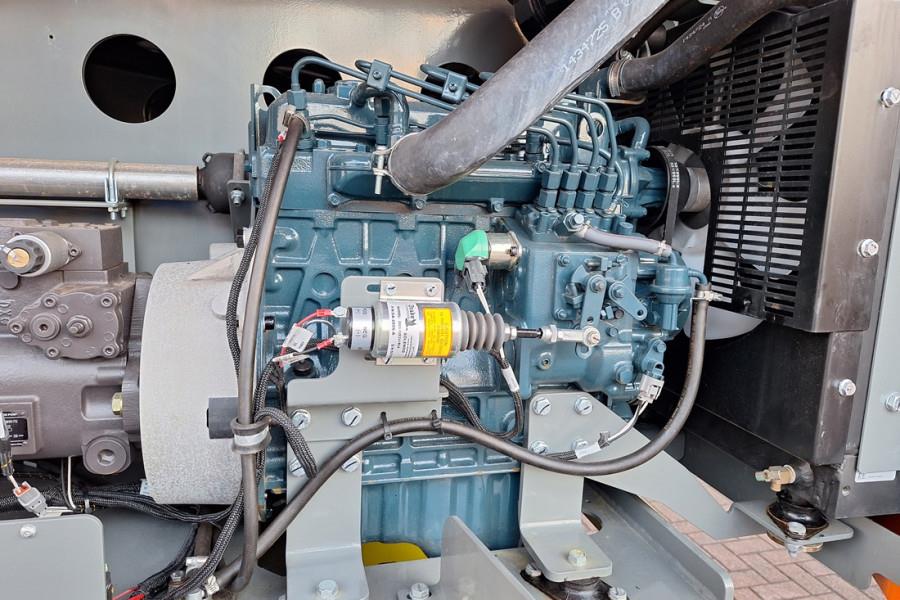

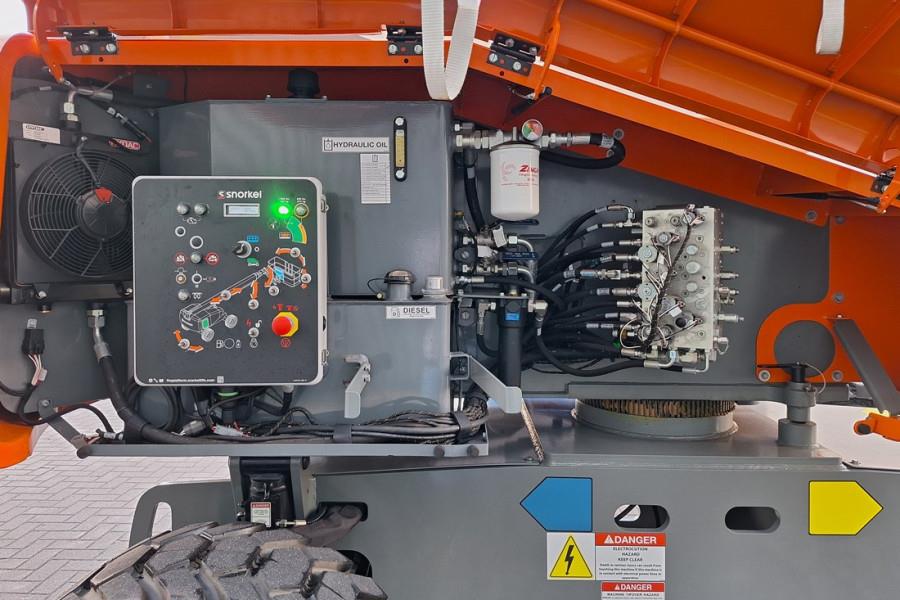

Power Source: Kubota 18.6kW (24.9hp) diesel – Stage V
Auxiliary Power Unit: 12V DC

Machine Dimensions:
Overall Length: 8.6m
Overall Width: 2.31m
Stowed Height: 2.38m

Transport Dimensions:
Transport Length: 6.81m
Transport width: 2.08m
Transport Height: 2.92m
Weight: 7.829kg

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors



🇬🇧 Information in English:

Type of fuel: Diesel
Working height: 1.600 cm
Front tyres / undercarriage remaining: 0
Rear tyres remaining : 0
Tyre brand: -
Max. horizontal reach: 1230 m
Transport dimensions (LxWxH): 8.6x2.31x2.38
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
